Drip Legs in Compressed Air Piping: Purpose, Sizing, and Installation

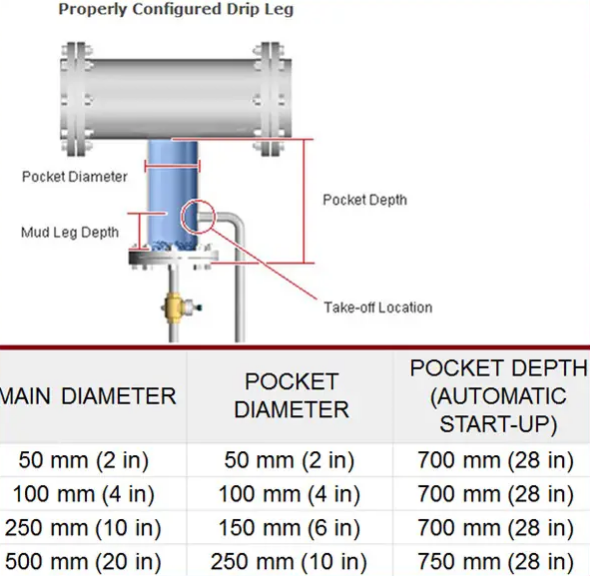

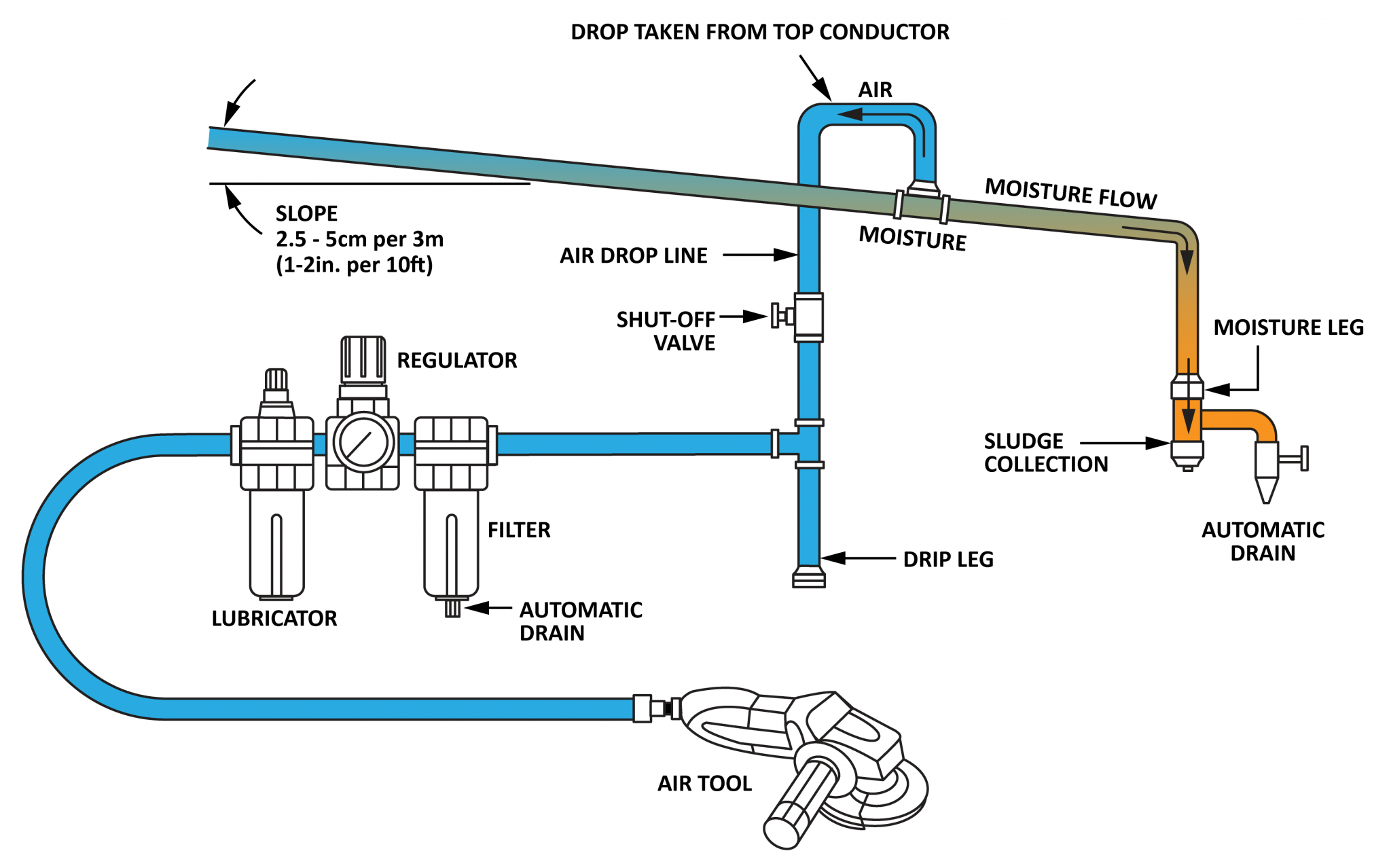

A drip leg is a vertical dead-end pocket below a compressed air main that collects liquid condensate by gravity. Where to put them is in CAGI's handbook. Diameter matches the main or one size up. Stratified flow below 25 fps in the main gives good collection, annular flow above 35 fps cuts it roughly in half. All published.

Length is not published. No standard specifies it. The installed base runs on 4-inch supply house nipples that hold 0.058 gallons on a 2-inch main, which overflows somewhere between three and twelve minutes after a drain valve fails closed depending on the condensate rate for the pipe segment. The article is about why this dimension should be 38 inches of 3-inch pipe for a typical indoor installation instead of 4 inches of 2-inch pipe, and about the relationship between drip leg length and BEKOMAT performance in emulsion service that makes the length question unanswerable without knowing what drain is on the bottom and how often someone checks it.

Sizing

On a 200-cfm system at 100 psig, a pipe segment that cools air through 20°F produces about 1.2 gallons of condensate per hour. A mild indoor segment with 5°F of cooling, about 0.3. The accumulation requirement is that number multiplied by however many hours a failed drain goes unnoticed: four hours if maintenance walks the system every shift, eight if they check once a day. Four hours at 0.3 gal/hr in 3-inch Schedule 40 pipe works out to 38 inches. Eight hours at 1.2 gal/hr works out to 300 inches, which is twenty-five feet, which means the problem has outgrown what one drip leg can do and needs either a second collection point or redundant drains or an alarm.

The 38-inch number for moderate indoor service is the one that matters for most of the installed base. Fifteen dollars more than a nipple. Fits in available headroom. Moves the failure buffer from twelve minutes to four hours. The case for this as a standard specification is strong enough that the absence of it from any published standard reflects a gap in the standards, not a gap in the engineering.

The terminal drip leg on a pitched header collects condensate from the full header length, not just from its local segment, and needs sizing against the aggregate. Startup after a weekend shutdown runs three to four times steady-state condensation for the first half hour. Most plants run at 40-60 percent of rated capacity most of the year, and load/unload machines at half demand still produce 60-80 percent of full-load condensate.

Why Drain Technology Determines Drip Leg Length

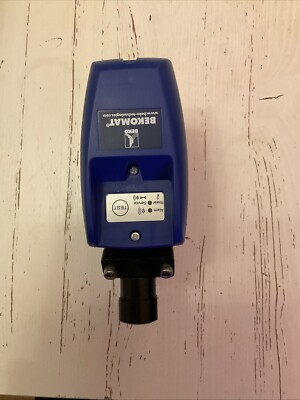

The BEKOMAT from Beko has been the default electronic no-loss drain in new North American industrial compressed air construction for at least fifteen years. In clean condensate it works well across long service intervals with zero air waste, and on oil-free compressor systems or well-maintained oil-flooded systems with fresh separator elements there is no reason to specify anything else.

Each drip leg needs a matched drain.

Capacitance sensing measures the dielectric constant of whatever is in the drip leg. Air is near 1, clean water is around 80, and the sensor threshold sits somewhere in between at a proprietary value that varies by model. Emulsions from oil-flooded screw compressors have dielectric constants between roughly 15 and 50 depending on oil fraction, which depends on separator element condition, oil age, load, and temperature.

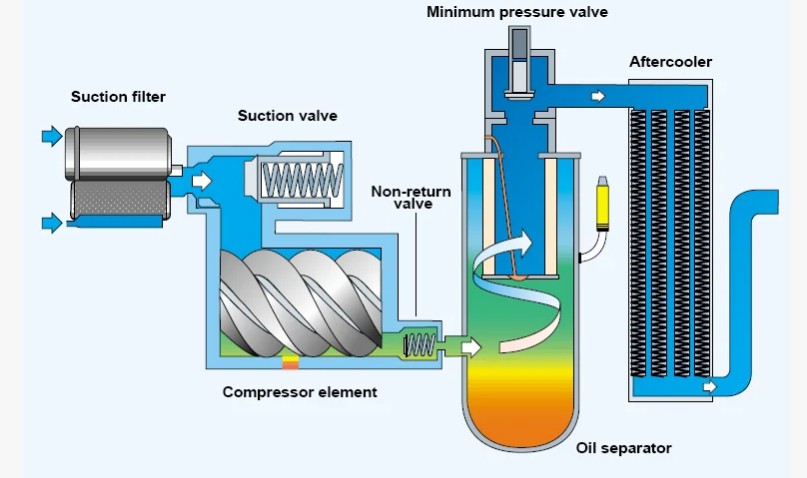

A fresh separator element at 500 hours on a well-maintained compressor produces condensate with enough free water phase that the BEKOMAT sensor reads it clearly above threshold. The same compressor at 9,000 hours on an 8,000-hour separator change interval, running warm, produces a thicker emulsion that may read 20 or 25 at the sensor surface. Whether that crosses the threshold on any given fill cycle depends on the instantaneous emulsion composition, how far the sensor calibration has drifted, and how much oil film has built up on the probe. Some cycles it opens. Some it does not. Over weeks the drip leg accumulates net liquid because the non-actuation cycles put in more than the actuation cycles take out.

Most BEKOMAT models have no alarm output for non-actuation. Ready state and silently-non-actuating state look identical from outside the unit.

The median industrial screw compressor in mid-size North American manufacturing is not the well-maintained machine in the product brochure. It is a 50 to 100-hp unit running a separator element somewhere past its change interval because the compressor continues to make air at 9,000 hours and at 10,000 hours and at 12,000 hours and the element costs four hundred dollars and the budget went elsewhere. Oil carryover is above specification and climbing gradually. The condensate quality this compressor produces is the condensate quality the BEKOMAT has to work in, and the BEKOMAT 13 CO, which Beko redesigned specifically to improve emulsion performance over the older BEKOMAT 12, handles moderate emulsion measurably better than its predecessor and still needs verification at intervals shorter than most maintenance programs provide when the emulsion gets heavy. Moderate emulsion in Beko's terms means low single-digit ppm carryover with the separator element in spec. The compressor described in this paragraph is not producing moderate emulsion.

How much time a BEKOMAT in heavy emulsion service spends non-functional is not something Beko publishes or would be expected to publish. Compressed air auditors encounter non-actuating electronic drains regularly enough that experienced auditors manually trigger every one during a walkthrough as a standard step rather than a targeted investigation. The percentage of facilities that monitor their own drain actuation on any schedule is low.

The drip leg length has to cover the non-actuation periods. How long those periods last depends on how often someone checks. A plant verifying drain function every two weeks has a two-week maximum non-actuation window. A plant checking annually might have a BEKOMAT that has not actuated in months, and neither the BEKOMAT nor the drip leg nor anything else in the system will indicate this until someone looks.

A 38-inch 3-inch drip leg holds about 1.2 gallons. At 0.3 gal/hr it overflows in four hours. At 1.2 gal/hr, one hour. If the maintenance program includes a weekly walk with visual confirmation of drain cycling, four hours of buffer is enough because the maximum undetected non-actuation window is one week, the drip leg overflows within the first day of that week, condensate enters the main for the remainder, and the next walk catches it. If the walk does not happen, the overflow starts on day one of the non-actuation event and continues indefinitely.

This means the drip leg length question and the drain verification question and the drain technology question are not three independent specifications. They are three variables in the same equation. A BEKOMAT with monthly verification on a 38-inch drip leg in moderate emulsion service is a functioning system. A BEKOMAT with annual verification on a 4-inch nipple in heavy emulsion service is a system that exists on the piping drawings and provides condensate management for whatever fraction of the year the BEKOMAT happens to be actuating.

The specifying engineer who puts BEKOMATs on every drip leg in a new plant is working from the manufacturer's catalog. The plant that runs those BEKOMATs for five years without verifying actuation has a condensate management system whose real-world performance depends entirely on whether the emulsion composition at any given moment happens to fall above or below the sensor threshold, and over the life of the installation the answer will be "sometimes above, sometimes below, unpredictably." The drip leg pocket is the only buffer between those below-threshold periods and wet air in the distribution main.

Jorc's Sepremium competes on a different sensing principle with its own emulsion response.

Float Drains

Armstrong's pneumatic float drains have been in compressed air and steam service for decades. They need no power, they have no sensor, and they corrode. The float gets sluggish. Drainage slows down. A technician who opens the manual bypass sees reduced flow, and that reduced flow is a warning that exists weeks or months before total failure.

This progressive failure characteristic is the single most important property a drain valve can have from a drip leg sizing standpoint, because it determines the length of the undetected non-actuation window, and the undetected non-actuation window is the input to the drip leg length calculation.

A BEKOMAT transitions from working to not-working between one fill cycle and the next with no external indication. A float drain transitions from working to working-poorly to working-barely to not-working over a period that can stretch across months, and during the working-poorly and working-barely phases it is still partially draining. The condensate accumulation rate in the drip leg during a float drain's degradation period is the difference between what comes in and what still drains out, which is much less than the full condensate rate. A drip leg on a degrading float drain fills more slowly than a drip leg on a non-actuating BEKOMAT, which means the same 38-inch drip leg provides a longer effective buffer on a float drain than on an electronic drain in emulsion service.

The energy argument against float drains is that they can fail open and leak compressed air continuously. The energy argument against timer drains, which waste 0.1-0.3 cfm averaged by design, is the same. Both arguments are correct on their own terms and irrelevant in a plant where the alternative is a BEKOMAT that has silently stopped actuating. The cost of the air leaked by a stuck-open float drain or a timer drain cycling on schedule is measured in pennies per hour. The cost of a corroded valve bank or a rejected production lot from condensate contamination is measured in thousands of dollars per event. The reason timer drains and float drains keep getting specified by people who maintain compressed air systems for a living, despite the energy auditors writing them up every time, is that these people have found non-actuating BEKOMATs on walkthroughs and they know what happens downstream when the drain is not working and.

If the maintenance program at a given facility will support monthly electronic drain verification, monthly meaning someone physically watches each drain actuate and confirms condensate comes out, the BEKOMAT is the right specification and the drip leg can be sized with a modest buffer. If the maintenance program will not support this, and the honest assessment for most mid-size manufacturing facilities is that it will not, the engineering effort is better spent on drip leg length and a simpler drain than on a drain technology whose performance depends on a maintenance commitment the facility has not made.

Emulsion Collection Penalty

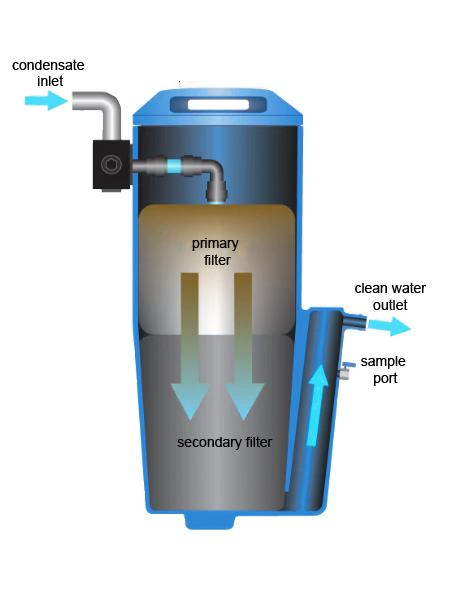

Oil-water emulsion from screw compressors has lower surface tension than water and films onto pipe walls instead of beading. At the drip leg tee, emulsion tends to creep past the junction without fully detaching from the pipe surface, which reduces collection efficiency relative to clean water condensate. The penalty varies with oil fraction and pipe surface condition. Adding length to the drip leg by 25-50 percent in systems with carryover above a few ppm is a rough accommodation for the combined effect of harder collection at the tee and more frequent drain non-actuation at the bottom, both of which trace to the same compressor maintenance condition.

Installation

Tee branch down, full bore, vertical. Ball valve and union below the leg for drain service access without depressurizing or cutting pipe, twenty dollars total. Pipe clamp at mid-height to structure because a full 38-inch 3-inch leg weighs 40 pounds cantilevered from the tee joint and thermal cycling over years of startups will fatigue an unsupported connection.

Self-regulating heat trace for freeze protection. Thermon's application guidance for dead-leg service specifies self-regulating over constant-wattage because constant-wattage creates hot spots, and a hot spot on standing liquid in a capped dead-end pocket produces a steam flash whose pressure transient can blow the drain fitting off the bottom of the leg. The drip leg holds standing liquid in a dead pocket with no flow and is the most freeze-vulnerable point in any compressed air system.

New piping sheds debris for the first few hundred operating hours. Cutting oil and thread compound and metal particles migrate with the condensate and settle on the drain valve seat at the lowest point in the system. Inspect and clean at 200 hours.

Draining a sample into a glass jar quarterly or monthly provides a look at upstream system condition. Clear with a light oil film is normal for a lubricated system. White emulsion means oil carryover is high enough to investigate the compressor separator element and also high enough that any BEKOMAT on the system should be verified for actuation immediately. Rust means the pipe is corroding from inadequate drying. Dark sludge means oil degradation and accumulated scale. CAGI recommends this as routine maintenance.

· · ·
