Permanent Magnet vs Induction Motor Screw Compressors
Equipment & Procurement

Permanent Magnet vs Induction Motor Screw Compressors

Technical Article
25 min read
US Market

Atlas Copco shipped the GA VSD+ in 2013. Within five years every major OEM had a PM motor compressor in the catalog. Some were engineered. Some were an existing induction motor platform with the motor swapped and the speed range stretched.

That distinction matters more than the motor itself.

The Airend Below 1200 RPM

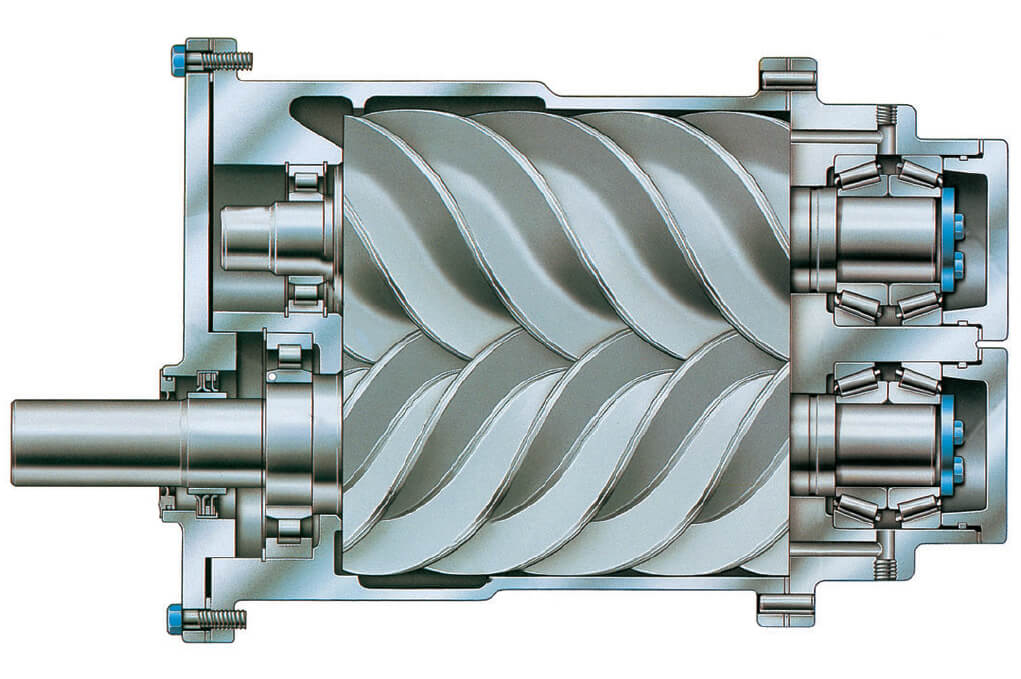

A screw airend is a volumetric machine with built-in leakage. Two rotors mesh inside a bore, sweeping gas pockets from suction to discharge. At every point during that sweep, gas leaks backward: through the gap between rotor tip and bore wall, through the contact line between male and female lobes, and through the blow-hole at the rotor intersection where helical geometry meets cylindrical geometry and the seal is geometrically impossible.

Domestic and European rotor clearance bands split 5 to 6 percent volumetric efficiency.

This is the central technical problem with PM motor screw compressors and most of what gets written about the PM-versus-induction comparison ignores it entirely.

A PM motor running at 900 RPM can be 95% electrically efficient. That number is meaningless if the airend at 900 RPM is recycling a fifth of its swept volume back to suction internally. Package specific energy at that operating point, measured in kilowatts per hundred cubic feet per minute of free air delivered at the discharge flange per ISO 1217 Annex C, depends on the product of motor efficiency and compression efficiency. A 95% efficient motor multiplied by a 75% volumetrically efficient airend at low speed can produce worse specific energy than a 92% efficient induction motor driving the same airend at a higher, better-matched speed.

Atlas Copco understood this. The GA VSD+ airend was a new design with tighter rotor-to-bore clearance, around 0.05 mm. The oil injection ports were repositioned to improve internal sealing at low rotor tip speeds where the oil film on the bore wall thins out and stops plugging the clearance gap effectively. The wrap angle and discharge port timing were adjusted. This is expensive, precision manufacturing. The airend element in a GA VSD+ costs more to produce than the airend in a standard GA fixed-speed machine. That cost is part of the PM compressor's price premium, and it is the part that delivers the efficiency, not the magnets.

Several OEMs moving fast to get a PM product into the catalog did not redesign the airend. They used existing castings, existing rotor profiles, existing tolerances. At full speed these machines test within specification. At 30% capacity the airend is operating in a speed regime it was never designed for and the specific energy reflects that.

CAGI data sheets expose this split. They are public, on the CAGI website, and they list input power and specific energy at rated conditions for each verified compressor model. Comparing two 75 kW PM VSD units from different manufacturers at the same rated pressure can show a spread of 15% or more in specific energy. Both are marketed as PM compressors. Both have IE4 or IE5 motors. The motors are roughly equivalent. The airends are not.

If a manufacturer will not provide ISO 1217 Annex C test data at 25% and 50% capacity, not just at the rated point, that reluctance is itself data.

VFD Lock-in

An induction motor VFD is a catalog component. Siemens makes one. ABB makes one. Danfoss, Yaskawa, WEG, Fuji all make one. They compete on price. They are available from industrial distributors the same day. Parameterization requires motor nameplate data that is stamped on every induction motor frame on earth.

PM compressor VFDs are different in kind. The drive contains the PM motor's specific electromagnetic parameters: magnet flux linkage, d-axis and q-axis inductances, back-EMF constant, commutation timing, and field-weakening curves. These are embedded in proprietary firmware inside the compressor's integrated controller. The Atlas Copco Elektronikon, the Kaeser Sigma Control 2, the Ingersoll Rand Xe controller: each is a closed system where the VFD and the compressor logic are fused together and the replacement comes from one source.

There is no second source.

A VFD failure on a PM compressor means calling the OEM, requesting the specific replacement board or unit, and waiting for logistics. Pricing reflects the absence of competition. Lead time depends on regional warehouse inventory. A 75 kW induction motor drive from any of six manufacturers can be on site and commissioned in 12 hours. A proprietary PM compressor drive replacement can take anywhere from two days to three weeks, and the compressor is down for all of that time.

Over 15 years, budget for at least one VFD event per compressor. The cost difference on that single event, purchase price plus downtime, can consume a significant fraction of the cumulative energy savings that justified the PM premium. Most payback calculations model electricity only. They should model parts and downtime too.

Some newer PM compressor designs use standard Siemens or ABB servo drive platforms with the motor parameters accessible to the end user. This is the right direction. Ask about it during procurement. If the VFD is a black box with no third-party substitution path, that constraint belongs in the lifecycle cost model.

Bearing Currents Favor the Induction Motor

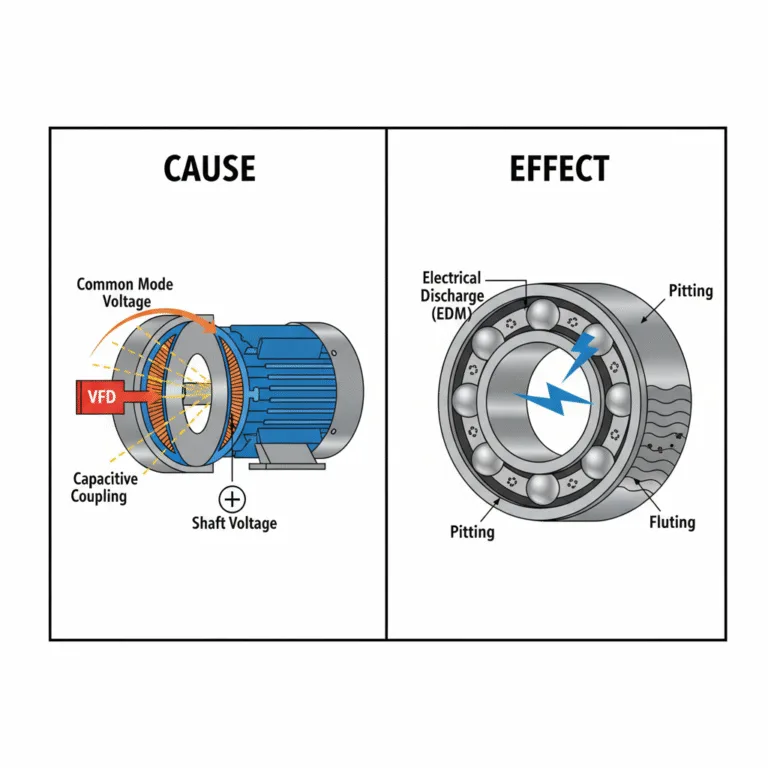

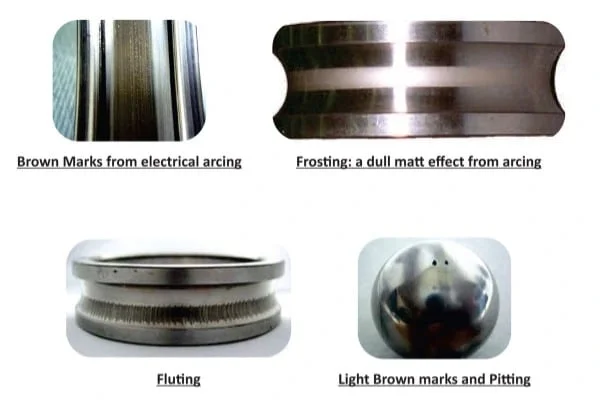

VFD switching transients create shaft voltage through capacitive coupling inside the motor. The voltage discharges through the bearing lubricant film in micro-arcs. Over months, those arcs machine the bearing races into a pattern called fluting.

The squirrel cage in an induction motor provides a conductive path that shunts some of this common-mode energy away from the shaft. Not all of it. Enough to measurably extend bearing life compared to a PM motor in the same electrical environment. ABB's ACS880 application notes distinguish PM and induction motor installations and specify more aggressive bearing protection for PM motors.

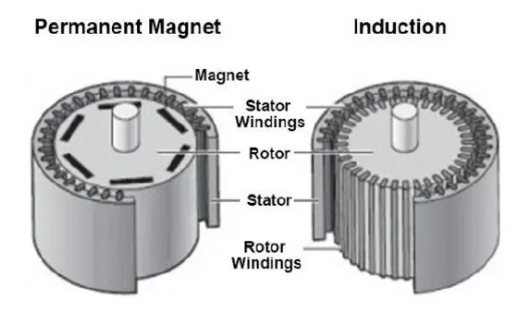

A PM rotor has no conductive cage. NdFeB magnets and insulated laminations present high impedance to common-mode currents. More current goes through the bearings. In a textbook installation with short cable runs, dV/dt filters, shaft grounding rings, insulated bearings, and a solid ground grid, both motor types achieve acceptable bearing life. In a compressor room built twenty years ago with corroded grounding connections and no output filters because the original spec did not call for them, the PM motor develops fluting first.

Demagnetization

NdFeB magnets lose remanent flux density with temperature. The loss reverses on cooling up to a grade-dependent threshold around 150°C for standard material. Above that, permanent damage. The rotor requires replacement from the OEM.

An overheated induction motor loses winding insulation life. Gradual, testable, repairable at any motor shop. Different category of failure. A clogged oil cooler on an induction motor compressor creates a maintenance item. The same clogged oil cooler on a PM compressor can create a rotor replacement.

Smaller Observations

Cold compressor starts in winter load the drive train heavily through high oil viscosity. Induction motors absorb this through slip. PM motors trip on overcurrent or rely on extended software ramp profiles and oil heaters. Manageable, not free.

PM rotors sharing the oil circuit for a decade can suffer magnet coating degradation from acidic oil breakdown products. NdFeB under a compromised nickel coating corrodes. Induction motor rotors are chemically inert in lubricant. Oil maintenance discipline on PM compressors carries higher stakes.

PM motors generate voltage after power loss because the magnets keep spinning with the airend. Protection circuits must absorb this. Induction motors lose their rotor field in milliseconds after losing excitation and coast harmlessly. One motor type carries a failure mode the other does not have at all.

Rare earth supply chain concentration affects PM motor pricing. The 2011 neodymium price spike saw NdFeB magnet costs increase by several hundred percent within months. Induction motor materials are globally diversified commodities.

Where Each Technology Belongs

The PM motor earns its cost on a trim compressor: one machine in a multi-compressor system handling the variable portion of demand, modulating across a wide capacity range. On that machine, the PM motor's flat partial-load efficiency curve and wide speed range deliver measurable energy reduction versus an induction motor VFD compressor doing the same job.

Base-load compressors running near full capacity gain little from PM motors. Under 6% specific energy advantage at full load per CAGI verified data. Commodity parts, universal repairability, no VFD lock-in, no demagnetization risk. A sequencing controller assigns each base-load machine to steady duty and sends the swing demand to the PM trim unit.

Specifying PM motors across every compressor in a fleet applies a cost premium and a proprietary dependency to machines whose operating profile does not exercise the PM motor's advantage.
